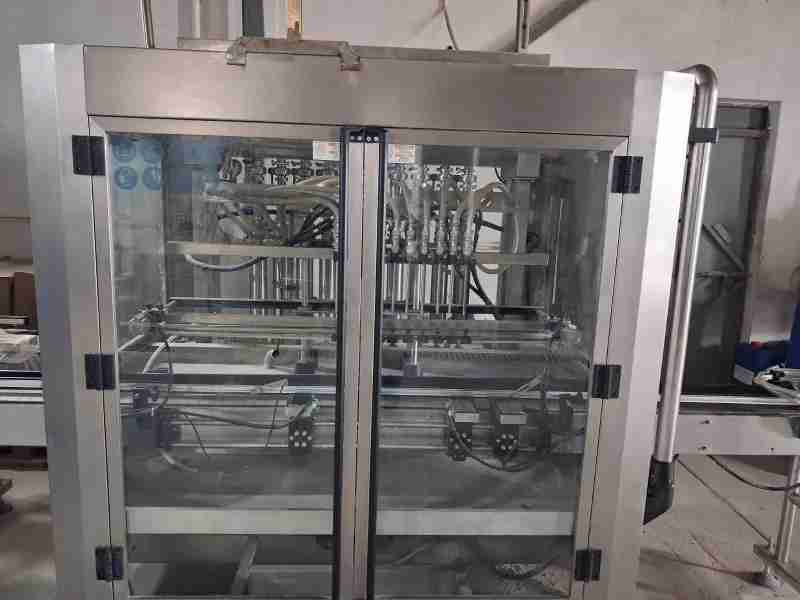

Automatic 10 Nozzles gel filling machine

Main feature:

1. PLC combined with touch screen control system with Liquid Filling Machine. Intelligent controlling system reduces operation errors. No filling when there are no bottles. High filling accuracy & No overflow. High filling speed and stable transmission. With strong counting function.

2. Servo Motor driven piston pump filling, Servo Motor driven piston and main cylinder for filling nozzle up and down. Multi-range filling (optional lifting filling structure is also optional). pneumatic induction positioning filling, can be equipped with pneumatic pump for automatic liquid delivery.

3. With regular filling, no bottle no filling, filling quantity/production counting function etc features.

4. No need to change parts are required for different bottle sizes. (Within the parameters)

5. The whole Liquid Filling Machine is made of food grade 304 & 316L stainless steel which provides a clean and hygienic environment.

6. The filling part is easy to disassemble and transfer. It usually only takes 20 minutes to replace parts.

7. Simple Operation. Anyone can operate proficiently in a short time. Easy to Clean.

Technical data:

filling nozzel 10 heads

filling volume 100-1000 Ml

filling speed 0-60 Bot/min

filling precision ± 1%

filling type Cylinder filling

Lifting type Cylinder lifting

Air source Mpa

Control way Siemens PLC

Contact material SS 316L

other material SS 304L

Electrical part Schneider
